• No need for concrete shaft

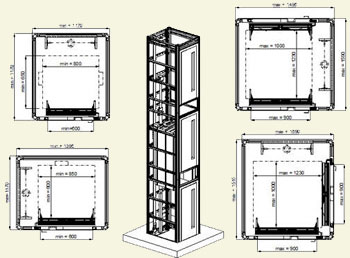

• Minimal requirements for pit depth dimensions: minimum 200 mm
• Minimal requirements for headroom dimensions: minimum 2450 mm
• No need for extra space for machine room - Machinery is enclosed in a small cabinet.
• Type Examination Certificate according to Directive 95/16 EC.
• Compliance to pr EN 81-21
• Automatic emergency evacuation
• Low energy consumption: 2-2,5 KWh per month
• Noiseless operation: 45-50db
• Ease of installation
• Mechanism to ensure installer's safety when operating in the shaft pit or on the top of the cabin
• A turnkey solution available with

The maisonLift Concept:

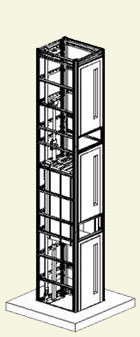

Shaft of aluminum construction

• Provides a solution for lift installation in buildings without shaft
• Consists of a three-side aluminum face (AlMgSi 0.5 F22 alloy): shaft column, horizontal side face and shaft slat
• Available with glass or metal facing
• High aesthetics

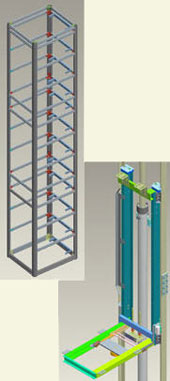

Hydraulic elevation system

• Manufactured with high quality materials that secure long life span.
• High leveling and stopping accuracy according to pr EN 81.70 that provides ride quality.
• Minimum maintenance requirements, low maintenance costs and readily available spare parts.
• Compatible also with biodegradable and non-flammable oil.

Power unit:

• Direct access to the power unit by the lift owner in cases of emergency evacuation
• Direct access to the power unit only by the installer for lift maintenance
• Three-phase or single-phase motor available upon request
